  • 平板下用的导航栏是taskbar，back home recents 这些按钮不是居中是靠右，这个代码在launcher3里面。
  • 手机模式用的导航栏是NavitionBar，代码在SystemUi下
  • 源码里判断是否是平板模式，也就是isLargeScreen 都是看屏幕最小宽度是否大于600dp

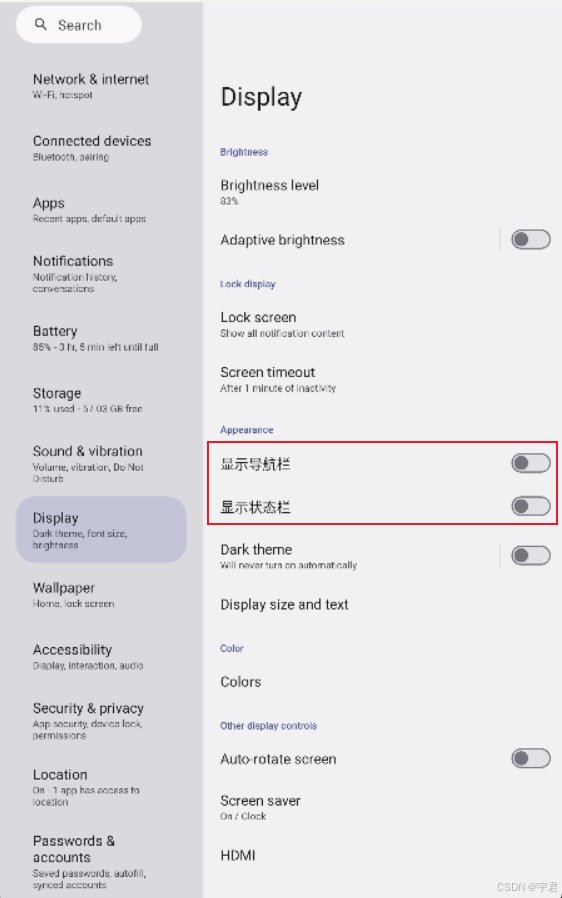

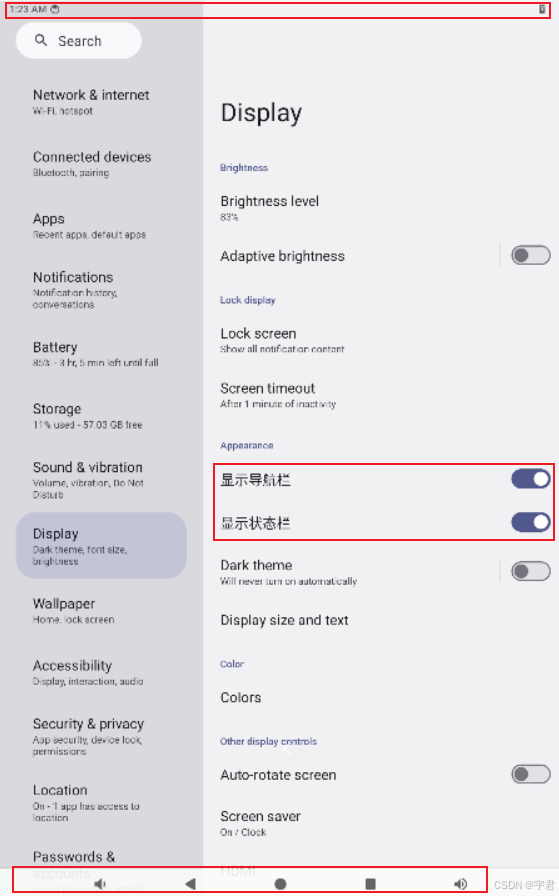

  • 需求，平板设备，设置-显示里面新增 导航栏/状态栏 显示开关，动态隐藏/显示导航栏/状态栏

总共分几步进行

1.在设置界面里面新增导航栏/状态栏 显示开关，并按照设置发送广播

2.在launcher3里面关闭taskbar创建

3.在SystemUi下增加接收广播设置，按照广播带的参数，动态隐藏/显示导航栏/状态栏

下面具体说明修改点

1.设置界面里面新增导航栏/状态栏 显示开关，并按照设置发送广播

修改点

packages/apps/Settings

diff --git a/res/values-zh-rCN/strings.xml b/res/values-zh-rCN/strings.xml
index 21fbb7b16c..472848dd4d 100644
--- a/res/values-zh-rCN/strings.xml
+++ b/res/values-zh-rCN/strings.xml
@@ -1002,6 +1002,8 @@
     <string name="color_mode_option_automatic" msgid="2281217686509980870">"自适应"</string>
     <string name="brightness" msgid="6216871641021779698">"亮度"</string>
     <string name="auto_brightness_title" msgid="4239324728760986697">"自适应亮度"</string>
+    <string name="show_navigate" >"显示导航栏"</string>
+    <string name="show_statusbar" >"显示状态栏"</string>
     <string name="auto_brightness_description" msgid="6807117118142381193">"系统会根据您的环境和活动自动调节屏幕亮度。您可以手动移动滑块，帮助“自适应亮度”功能了解您偏好的亮度。"</string>
     <string name="auto_brightness_summary_on" msgid="2748088951224387004">"已开启"</string>
     <string name="auto_brightness_summary_off" msgid="8077066192887677956">"已关闭"</string>
diff --git a/res/values/strings.xml b/res/values/strings.xml
index f5399d0734..5fe0baf5c7 100644
--- a/res/values/strings.xml
+++ b/res/values/strings.xml
@@ -2383,6 +2383,8 @@
     <string name="brightness">Brightness level</string>
     <!-- Sound & display settings screen, setting option name to enable adaptive brightness [CHAR LIMIT=30] -->
     <string name="auto_brightness_title">Adaptive brightness</string>
+    <string name="show_navigate" >"Show navigate bar"</string>
+    <string name="show_statusbar" >"Show status bar"</string>
     <!-- Description about the feature adaptive brightness -->
     <string name="auto_brightness_description">Your screen brightness will automatically adjust to your environment and activities. You can move the slider manually to help adaptive brightness learn your preferences.</string>
     <!-- Setting option summary when adaptive brightness is on [CHAR LIMIT=NONE] -->
diff --git a/res/xml/display_settings.xml b/res/xml/display_settings.xml
old mode 100644
new mode 100755
index 7d60562637..fb9507a5f4
--- a/res/xml/display_settings.xml
+++ b/res/xml/display_settings.xml
@@ -66,6 +66,16 @@
     <PreferenceCategory
         android:title="@string/category_name_appearance">

+        <SwitchPreference
+            android:key="show_navigate"
+            android:title="@string/show_navigate"
+            settings:controller="com.android.settings.display.ShowNavigatePreferenceController" />
+
+        <SwitchPreference
+            android:key="show_statusbar"
+            android:title="@string/show_statusbar"
+            settings:controller="com.android.settings.display.ShowStatusBarPreferenceController" />
+
         <com.android.settings.display.darkmode.DarkModePreference
             android:key="dark_ui_mode"
             android:title="@string/dark_ui_mode"
diff --git a/src/com/android/settings/DisplaySettings.java b/src/com/android/settings/DisplaySettings.java
old mode 100644
new mode 100755
index 8c6b1b6be2..9ad4241427
--- a/src/com/android/settings/DisplaySettings.java
+++ b/src/com/android/settings/DisplaySettings.java
@@ -53,6 +53,8 @@ public class DisplaySettings extends DashboardFragment {

     //-----------------------rk code----------
     private static final String KET_HDMI_SETTINGS = "hdmi_settings";
+    private static final String KEY_SHOW_NAVIGATE = "show_navigate";
+    private static final String KEY_SHOW_STATUSBAR = "show_statusbar";
     private static final String KET_EYE_CARE_SETTING = "eye_care_setting";
     private static final String KET_EYE_CARE_GAIN_SETTING = "eye_care_gain";
     private static final String KET_EBOOK_MODE_SETTING = "ebook_mode_setting";
diff --git a/src/com/android/settings/display/ShowNavigatePreferenceController.java b/src/com/android/settings/display/ShowNavigatePreferenceController.java
new file mode 100755
index 0000000000..1dabde3f94
--- /dev/null
+++ b/src/com/android/settings/display/ShowNavigatePreferenceController.java
@@ -0,0 +1,119 @@
+/*
+ * Copyright (C) 2016 The Android Open Source Project
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file
+ * except in compliance with the License. You may obtain a copy of the License at
+ *
+ *      http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software distributed under the
+ * License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
+ * KIND, either express or implied. See the License for the specific language governing
+ * permissions and limitations under the License.
+ */
+package com.android.settings.display;
+
+import android.app.settings.SettingsEnums;
+import android.content.Context;
+import android.text.TextUtils;
+
+import androidx.preference.Preference;
+
+import com.android.internal.view.RotationPolicy;
+import com.android.settings.core.PreferenceControllerMixin;
+import com.android.settings.core.TogglePreferenceController;
+import com.android.settings.overlay.FeatureFactory;
+import com.android.settingslib.core.instrumentation.MetricsFeatureProvider;
+import com.android.settingslib.core.lifecycle.LifecycleObserver;
+import com.android.settingslib.core.lifecycle.events.OnPause;
+import com.android.settingslib.core.lifecycle.events.OnResume;
+import android.util.Log;
+import android.app.StatusBarManager;
+import android.provider.Settings;
+import android.content.Intent;
+import com.android.settings.R;
+
+public class ShowNavigatePreferenceController extends TogglePreferenceController implements
+        PreferenceControllerMixin, Preference.OnPreferenceChangeListener, LifecycleObserver,
+        OnResume, OnPause {
+
+    private final MetricsFeatureProvider mMetricsFeatureProvider;
+    StatusBarManager mStatusBarManager;
+    private Preference mPreference;
+    private RotationPolicy.RotationPolicyListener mRotationPolicyListener;
+
+    public ShowNavigatePreferenceController(Context context, String key) {
+        super(context, key);
+        mStatusBarManager = (StatusBarManager) context.getSystemService(Context.STATUS_BAR_SERVICE);
+//        statusBarManager.disable(StatusBarManager.DISABLE_EXPAND);
+        mMetricsFeatureProvider = FeatureFactory.getFactory(context).getMetricsFeatureProvider();
+    }
+
+    @Override
+    public void updateState(Preference preference) {
+        mPreference = preference;
+        super.updateState(preference);
+    }
+
+    @Override
+    public void onResume() {
+        if (mRotationPolicyListener == null) {
+            mRotationPolicyListener = new RotationPolicy.RotationPolicyListener() {
+                @Override
+                public void onChange() {
+                    if (mPreference != null) {
+                        updateState(mPreference);
+                    }
+                }
+            };
+        }
+        RotationPolicy.registerRotationPolicyListener(mContext,
+                mRotationPolicyListener);
+    }
+
+    @Override
+    public void onPause() {
+        if (mRotationPolicyListener != null) {
+            RotationPolicy.unregisterRotationPolicyListener(mContext, mRotationPolicyListener);
+        }
+    }
+
+    @Override
+    public int getAvailabilityStatus() {
+        return RotationPolicy.isRotationLockToggleVisible(mContext)
+                ? AVAILABLE : UNSUPPORTED_ON_DEVICE;
+    }
+
+    @Override
+    public boolean isSliceable() {
+        return TextUtils.equals(getPreferenceKey(), "show_navigate");
+    }
+
+    @Override
+    public boolean isPublicSlice() {
+        return true;
+    }
+
+    @Override
+    public boolean isChecked() {
+        return (Settings.Global.getInt(mContext.getContentResolver(), Settings.Global.SHOW_NAVIGATE, 0) == 1);
+    }
+
+    @Override
+    public boolean setChecked(boolean isChecked) {
+        Intent i = new Intent("com.fuzhou.statusbar.SHOW_OR_HIDE");
+        if(isChecked)
+            i.putExtra("mode", 1);
+        else
+            i.putExtra("mode", 2);
+        mContext.sendBroadcast(i);
+        Settings.Global.putInt(mContext.getContentResolver(), Settings.Global.SHOW_NAVIGATE,
+                isChecked ? 1 : 0 /* Backwards because setting is for disabling */);
+        return true;
+    }
+
+    @Override
+    public int getSliceHighlightMenuRes() {
+        return R.string.menu_key_display;
+    }
+}
diff --git a/src/com/android/settings/display/ShowStatusBarPreferenceController.java b/src/com/android/settings/display/ShowStatusBarPreferenceController.java
new file mode 100755
index 0000000000..ac4892cb4b
--- /dev/null
+++ b/src/com/android/settings/display/ShowStatusBarPreferenceController.java
@@ -0,0 +1,124 @@
+/*
+ * Copyright (C) 2016 The Android Open Source Project
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file
+ * except in compliance with the License. You may obtain a copy of the License at
+ *
+ *      http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software distributed under the
+ * License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
+ * KIND, either express or implied. See the License for the specific language governing
+ * permissions and limitations under the License.
+ */
+package com.android.settings.display;
+
+import android.app.settings.SettingsEnums;
+import android.content.Context;
+import android.text.TextUtils;
+
+import androidx.preference.Preference;
+
+import com.android.internal.view.RotationPolicy;
+import com.android.settings.core.PreferenceControllerMixin;
+import com.android.settings.core.TogglePreferenceController;
+import com.android.settings.overlay.FeatureFactory;
+import com.android.settingslib.core.instrumentation.MetricsFeatureProvider;
+import com.android.settingslib.core.lifecycle.LifecycleObserver;
+import com.android.settingslib.core.lifecycle.events.OnPause;
+import com.android.settingslib.core.lifecycle.events.OnResume;
+import android.util.Log;
+import android.app.StatusBarManager;
+import android.provider.Settings;
+import android.content.Intent;
+import com.android.settings.R;
+public class ShowStatusBarPreferenceController extends TogglePreferenceController implements
+        PreferenceControllerMixin, Preference.OnPreferenceChangeListener, LifecycleObserver,
+        OnResume, OnPause {
+
+    private final MetricsFeatureProvider mMetricsFeatureProvider;
+    StatusBarManager mStatusBarManager;
+    private Preference mPreference;
+    private RotationPolicy.RotationPolicyListener mRotationPolicyListener;
+
+    public ShowStatusBarPreferenceController(Context context, String key) {
+        super(context, key);
+        mStatusBarManager = (StatusBarManager) context.getSystemService(Context.STATUS_BAR_SERVICE);
+        mMetricsFeatureProvider = FeatureFactory.getFactory(context).getMetricsFeatureProvider();
+    }
+
+    @Override
+    public void updateState(Preference preference) {
+        mPreference = preference;
+        super.updateState(preference);
+    }
+
+    @Override
+    public void onResume() {
+        if (mRotationPolicyListener == null) {
+            mRotationPolicyListener = new RotationPolicy.RotationPolicyListener() {
+                @Override
+                public void onChange() {
+                    if (mPreference != null) {
+                        updateState(mPreference);
+                    }
+                }
+            };
+        }
+        RotationPolicy.registerRotationPolicyListener(mContext,
+                mRotationPolicyListener);
+    }
+
+    @Override
+    public void onPause() {
+        if (mRotationPolicyListener != null) {
+            RotationPolicy.unregisterRotationPolicyListener(mContext, mRotationPolicyListener);
+        }
+    }
+
+    @Override
+    public int getAvailabilityStatus() {
+        return RotationPolicy.isRotationLockToggleVisible(mContext)
+                ? AVAILABLE : UNSUPPORTED_ON_DEVICE;
+    }
+
+    @Override
+    public boolean isSliceable() {
+        return TextUtils.equals(getPreferenceKey(), "show_statusbar");
+    }
+
+    @Override
+    public boolean isPublicSlice() {
+        return true;
+    }
+
+    @Override
+    public boolean isChecked() {
+        return (Settings.Global.getInt(mContext.getContentResolver(), Settings.Global.SHOW_STATUSBAR, 0) == 1);
+    }
+
+    @Override
+    public boolean setChecked(boolean isChecked) {
+        Intent i = new Intent("com.fuzhou.statusbar.SHOW_OR_HIDE");
+        if(isChecked) {
+            i.putExtra("mode", 3);
+        }
+        else{
+            i.putExtra("mode", 4);
+        }
+
+        mContext.sendBroadcast(i);
+        Settings.Global.putInt(mContext.getContentResolver(), Settings.Global.SHOW_STATUSBAR,
+                isChecked ? 1 : 0 /* Backwards because setting is for disabling */);
+        return true;
+    }
+
+    @Override
+    public int getSliceHighlightMenuRes() {
+        return R.string.menu_key_display;
+    }
+}

2，关闭taskbar的创建

修改点

packages/apps/Launcher3

diff --git a/quickstep/src/com/android/launcher3/taskbar/TaskbarManager.java b/quickstep/src/com/android/launcher3/taskbar/TaskbarManager.java
index b115ca8032..ffd2c9b15e 100644
--- a/quickstep/src/com/android/launcher3/taskbar/TaskbarManager.java
+++ b/quickstep/src/com/android/launcher3/taskbar/TaskbarManager.java
@@ -491,7 +491,8 @@ public class TaskbarManager {
     }

     private boolean isTaskbarPresent(DeviceProfile deviceProfile) {
-        return FLAG_HIDE_NAVBAR_WINDOW || deviceProfile.isTaskbarPresent;
+        //return FLAG_HIDE_NAVBAR_WINDOW || deviceProfile.isTaskbarPresent;
+        return false;
     }

     public void onRotationProposal(int rotation, boolean isValid) {

3.接收广播设置，按照广播带的参数，动态隐藏/显示导航栏/状态栏，

还有为了保存新增设置 的修改，否则重启后设置会丢失

修改点

diff --git a/core/api/current.txt b/core/api/current.txt
index f5a761106106..3402e29bdc6c 100644
--- a/core/api/current.txt
+++ b/core/api/current.txt
@@ -37514,7 +37514,9 @@ package android.provider {
     field public static final String RADIO_NFC = "nfc";
     field public static final String RADIO_WIFI = "wifi";
     field public static final String SECURE_FRP_MODE = "secure_frp_mode";
+    field public static final String SHOW_NAVIGATE = "show_navigate";
     field @Deprecated public static final String SHOW_PROCESSES = "show_processes";
+    field public static final String SHOW_STATUSBAR = "show_statusbar";
     field public static final String STAY_ON_WHILE_PLUGGED_IN = "stay_on_while_plugged_in";
     field public static final String TRANSITION_ANIMATION_SCALE = "transition_animation_scale";
     field public static final String USB_MASS_STORAGE_ENABLED = "usb_mass_storage_enabled";
diff --git a/core/java/android/provider/Settings.java b/core/java/android/provider/Settings.java
index 12934d06bb3d..e27948f55e83 100644
--- a/core/java/android/provider/Settings.java
+++ b/core/java/android/provider/Settings.java
@@ -11895,6 +11895,11 @@ public final class Settings {
         @Readable
         public static final String THEATER_MODE_ON = "theater_mode_on";

+        @SuppressLint("NoSettingsProvider")
+        public static final String SHOW_STATUSBAR= "show_statusbar";
+        @SuppressLint("NoSettingsProvider")
+        public static final String SHOW_NAVIGATE= "show_navigate";
+
         /**
          * Constant for use in AIRPLANE_MODE_RADIOS or SATELLITE_MODE_RADIOS to specify Bluetooth
          * radio.
diff --git a/packages/SettingsProvider/res/values/defaults.xml b/packages/SettingsProvider/res/values/defaults.xml
index aaaad047426a..35d903447fdd 100644
--- a/packages/SettingsProvider/res/values/defaults.xml
+++ b/packages/SettingsProvider/res/values/defaults.xml
@@ -17,6 +17,8 @@
  */
 -->
 <resources>
+    <bool name="def_show_statusbar">true</bool>
+    <bool name="def_show_navigate">true</bool>
     <bool name="def_dim_screen">true</bool>
     <integer name="def_screen_off_timeout">60000</integer>
     <integer name="def_sleep_timeout">-1</integer>
diff --git a/packages/SettingsProvider/src/com/android/providers/settings/DatabaseHelper.java b/packages/SettingsProvider/src/com/android/providers/settings/DatabaseHelper.java
index c125481b3a14..9b59d053af9f 100644
--- a/packages/SettingsProvider/src/com/android/providers/settings/DatabaseHelper.java
+++ b/packages/SettingsProvider/src/com/android/providers/settings/DatabaseHelper.java
@@ -2410,6 +2410,9 @@ class DatabaseHelper extends SQLiteOpenHelper {
             stmt = db.compileStatement("INSERT OR IGNORE INTO global(name,value)"
                     + " VALUES(?,?);");

+            loadBooleanSetting(stmt, Settings.Global.SHOW_NAVIGATE,R.bool.def_show_navigate);
+            loadBooleanSetting(stmt, Settings.Global.SHOW_STATUSBAR,R.bool.def_show_statusbar);
+
             // --- Previously in 'system'
             loadBooleanSetting(stmt, Settings.Global.AIRPLANE_MODE_ON,
                     R.bool.def_airplane_mode_on);
diff --git a/packages/SystemUI/shared/src/com/android/systemui/shared/recents/utilities/Utilities.java b/packages/SystemUI/shared/src/com/android/systemui/shared/recents/utilities/Utilities.java
index 751a3f8458bd..d1a5fe04f5a3 100644
--- a/packages/SystemUI/shared/src/com/android/systemui/shared/recents/utilities/Utilities.java
+++ b/packages/SystemUI/shared/src/com/android/systemui/shared/recents/utilities/Utilities.java
@@ -143,7 +143,8 @@ public class Utilities {

         float smallestWidth = dpiFromPx(Math.min(bounds.width(), bounds.height()),
                 context.getResources().getConfiguration().densityDpi);
-        return smallestWidth >= TABLET_MIN_DPS;
+        //return smallestWidth >= TABLET_MIN_DPS;
+        return false;
     }

     public static float dpiFromPx(float size, int densityDpi) {
diff --git a/packages/SystemUI/src/com/android/systemui/statusbar/phone/CentralSurfacesImpl.java b/packages/SystemUI/src/com/android/systemui/statusbar/phone/CentralSurfacesImpl.java
index 0e6835c03d49..e9cf418e63f3 100644
--- a/packages/SystemUI/src/com/android/systemui/statusbar/phone/CentralSurfacesImpl.java
+++ b/packages/SystemUI/src/com/android/systemui/statusbar/phone/CentralSurfacesImpl.java
@@ -285,7 +285,6 @@ import javax.inject.Provider;
  */
 @SysUISingleton
 public class CentralSurfacesImpl implements CoreStartable, CentralSurfaces {
-
     private static final String BANNER_ACTION_CANCEL =
             "com.android.systemui.statusbar.banner_action_cancel";
     private static final String BANNER_ACTION_SETUP =
@@ -940,6 +939,36 @@ public class CentralSurfacesImpl implements CoreStartable, CentralSurfaces {
         bubbles.setExpandListener(listener);
     }

+    private final BroadcastReceiver mStatusShowHide  = new BroadcastReceiver() {
+        @Override
+        public void onReceive(Context context, Intent intent) {
+            String action = intent.getAction();
+            if ("com.fuzhou.statusbar.SHOW_OR_HIDE".equals(action)) {
+                final int mode = intent.getIntExtra("mode", 1);
+                switch (mode){
+                    case 1:
+                        if(getNavigationBarView() != null)
+                            getNavigationBarView().getRootView().setVisibility(View.VISIBLE);
+                        break;
+                    case 2:
+                        if(getNavigationBarView() != null)
+                            getNavigationBarView().getRootView().setVisibility(View.GONE);
+                        break;
+                    case 3:
+                        if(mStatusBarView != null)
+                            mStatusBarView.getRootView().setVisibility(View.VISIBLE);
+                            mCommandQueue.mEnablePanel = true;
+                        break;
+                    case 4:
+                        if(mStatusBarView != null)
+                            mStatusBarView.getRootView().setVisibility(View.GONE);
+                            mCommandQueue.mEnablePanel = false;
+                        break;
+                }
+            }
+        }
+    };
+
     @Override
     public void start() {
         mScreenLifecycle.addObserver(mScreenObserver);
@@ -985,6 +1014,10 @@ public class CentralSurfacesImpl implements CoreStartable, CentralSurfaces {

         createAndAddWindows(result);

+        IntentFilter statusFilter = new IntentFilter();
+        statusFilter.addAction("com.fuzhou.statusbar.SHOW_OR_HIDE");
+        mBroadcastDispatcher.registerReceiver(mStatusShowHide, statusFilter);
+
         // Set up the initial notification state. This needs to happen before CommandQueue.disable()
         setUpPresenter();

diff --git a/packages/SystemUI/src/com/android/systemui/statusbar/CommandQueue.java b/packages/SystemUI/src/com/android/systemui/statusbar/CommandQueue.java
index 6304c1ea2635..85fb73f3deb5 100644
--- a/packages/SystemUI/src/com/android/systemui/statusbar/CommandQueue.java
+++ b/packages/SystemUI/src/com/android/systemui/statusbar/CommandQueue.java
@@ -79,6 +79,7 @@ import java.io.FileOutputStream;
 import java.io.OutputStream;
 import java.io.PrintWriter;
 import java.util.ArrayList;
+import android.provider.Settings;

 /**
  * This class takes the functions from IStatusBar that come in on
@@ -180,6 +181,7 @@ public class CommandQueue extends IStatusBar.Stub implements
     public static final int FLAG_EXCLUDE_COMPAT_MODE_PANEL = 1 << 4;

     private static final String SHOW_IME_SWITCHER_KEY = "showImeSwitcherKey";
+    public Boolean mEnablePanel = true;

     private final Object mLock = new Object();
     private ArrayList<Callbacks> mCallbacks = new ArrayList<>();
@@ -542,14 +544,16 @@ public class CommandQueue extends IStatusBar.Stub implements
         }, new HandlerExecutor(mHandler));
         // We always have default display.
         setDisabled(mDisplayTracker.getDefaultDisplayId(), DISABLE_NONE, DISABLE2_NONE);
+        mEnablePanel = Settings.Global.getInt(context.getContentResolver(),Settings.Global.SHOW_STATUSBAR, 0)== 1;
     }

     // TODO(b/118592525): add multi-display support if needed.
     public boolean panelsEnabled() {
-        final int disabled1 = getDisabled1(mDisplayTracker.getDefaultDisplayId());
-        final int disabled2 = getDisabled2(mDisplayTracker.getDefaultDisplayId());
-        return (disabled1 & StatusBarManager.DISABLE_EXPAND) == 0
-                && (disabled2 & StatusBarManager.DISABLE2_NOTIFICATION_SHADE) == 0;
+//        final int disabled1 = getDisabled1(mDisplayTracker.getDefaultDisplayId());
+//        final int disabled2 = getDisabled2(mDisplayTracker.getDefaultDisplayId());
+//        return (disabled1 & StatusBarManager.DISABLE_EXPAND) == 0
+//                && (disabled2 & StatusBarManager.DISABLE2_NOTIFICATION_SHADE) == 0;
+        return mEnablePanel;
     }

     @Override

嵌入式开发板网络配置避坑

RK3576 Android14 有线网卡静态 IP 配置全攻略，附数据实操

一键订阅
标签
#elasticsearch #大数据 #搜索引擎
Android导航栏与状态栏持久隐藏，且向上滑动时又需要显示的方案
itheima123456的博客
07-31 3338
实现项目中导航栏与状态栏在点击切换时隐藏，且滑动时又需要显示的方法 最近做项目时产品提出需要将页面中的状态栏隐藏，但是当手向上或者向下滑动又需要显示，这个东西我当时还觉得产品是不是故意刁难人，最后发现这个需求还是可以实现的 先实现沉浸式状态的隐藏于显示 以下是我些代码的笔记 public static void hideSystemUI(View decorView) { // if (Build.VERSION.SDK_INT>=14 && Build.VERS
Android 14平板模式大改造：手把手教你为Settings添加导航栏/状态栏开关（附完整源码）
weixin_28339967的博客
03-26 465
本文详细解析了如何在Android 14系统中为Settings应用添加导航栏和状态栏的动态开关功能，帮助用户根据使用场景自由控制这两大系统组件的显示与隐藏。通过修改Settings、Launcher3和SystemUI模块，实现全屏沉浸模式的深度定制，提升平板用户体验。
RK Android14系统设置中添加导航栏
12-29
RK Android14系统设置中添加导航栏
Android 14 平板模式：深度定制导航栏与状态栏的动态显示方案
weixin_29212429的博客
03-09 148
本文详细解析了在Android 14平板上深度定制导航栏与状态栏动态显示与隐藏的完整方案。通过修改系统设置、Launcher3及SystemUI模块，实现了用户可控的开关功能，解决了大屏设备沉浸式体验的痛点，并提供了清晰的代码实现路径与调试要点。
Android 14.0 SystemUI设置系统导航栏默认为系统手势导航
安卓兼职framework和app工程师的博客
03-15 1875
在14.0的原生系统rom产品定制化开发中，系统导航栏在10.0以后可以支持手势导航，但系统导航栏默认的是三键导航，Home Back Recent键三个键显示在底部 但是对于一些全屏的app 感觉操作起来不太方便，所以产品需要要求使用导航栏设置为系统手势导航这时系统底部就不会被占用了 接下来看下相关功能的实现
Android 12.0 app全屏时通过系统属性控制上滑是否显示虚拟导航栏和状态栏
安卓兼职framework和app工程师的博客
04-19 1544
在12.0的系统rom定制化os开发中，在系统默认的功能中，在app设置全屏后，会隐藏导航栏和状态栏，页面全屏显示，然后如果底部上滑这时就会显示虚拟 状态栏和导航栏显示几秒钟后会自动消失，由于项目开发的功能需求，要求需要要求通过api来控制全屏时上滑是否显示虚拟导航栏和状态栏，这就要从上滑事件 分析看如何显示虚拟导航栏和状态栏的流程来控制是否显示的实现
android 14.0 SystemUI导航栏添加虚拟按键功能(三)
安卓兼职framework和app工程师的博客
05-04 1274
在14.0的系统ROM产品定制化开发中，对于在SystemUI的原生系统中默认只有三键导航，想添加其他虚拟按键就需要先在构建导航栏的相关布局 中分析结构，然后添加相关的图标xml就可以了，然后添加对应的点击事件，就可以了，接下来先分析第三步关于导航栏的相关布局情况 然后实现虚拟按键的点击事件功能
Android14 全屏应用不显示状态和导航栏
qq_25283407的博客
07-09 2531
Android14 应用全屏设置，禁用上划/下滑 显示状态栏/导航栏 ,软键盘同步显示导航栏问题
android14状态栏和导航栏透明
pigbig5的博客
04-01 1966
android14 状态栏 和 导航栏 透明
RK3576 Android14 状态栏和导航栏增加显示控制功能
weixin_56061795的博客
01-16 2396
frameworks/base/packages/SystemUI/src/com/android/systemui/shade/NotificationPanelViewController.java 修改三个方法此类主要是锁屏后状态栏处理。android/packages/apps/Settings/src/com/android/settings/display/StatusBarPreferenceController.java（新增）4、设置-->显示菜单里的效果如下图。
MTKAndroid14动态显示导航栏状态栏
z1059721428的博客
09-04 349
在/vendor/mediatek/proprietary/packages/apps/SystemUI/src/com/android/systemui/statusbar/phone/CentralSurfacesImpl.java中接收广播，执行显示和隐藏的操作。在/vendor/mediatek/proprietary/packages/apps/SystemUI/src/com/android/systemui/statusbar/CommandQueue.java中禁止状态栏下拉。
Android 14状态栏显示日期
weixin_43229570的博客
11-06 1846
Android 14 SystemUI 的状态栏中同步显示时间和日期
Android 14.0 app全屏时通过系统属性控制上滑是否显示导航栏和状态栏功能实现
安卓兼职framework和app工程师的博客
06-16 1161
在14.0的系统rom定制化os开发中，在系统默认的功能中，在app设置全屏后，会隐藏导航栏和状态栏，页面全屏显示，然后如果底部上滑这时就会显示虚拟 状态栏和导航栏显示几秒钟后会自动消失，由于项目开发的功能需求，要求需要要求通过api来控制全屏时上滑是否显示虚拟导航栏和状态栏，这就要从上滑事件 分析看如何显示虚拟导航栏和状态栏的流程来控制是否显示的实现
【Android】隐藏状态栏StatusBar和导航栏NavigationBar
fei飞来了
04-01 3254
1、网络上关于隐藏StatusBar的方案很多，这里不再赘述，提供一个常见方式在activity下： // 隐藏状态栏 getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN); 2、一些手机比如华为的机子，大多都有虚拟按键即navi...
Android系统中状态栏、导航栏和下拉菜单
weixin_39789947的博客
01-09 2449
（NavigationBar）和下拉菜单（ExPlan）是三个常见的用户界面元素，它们分别提供了一些基本的信息显示和交互功能。例如，状态栏可以显示时间、电量、信号等信息，导航栏可以提供返回、主页、多任务等按钮，下拉菜单可以提供快速设置、通知等选项。如何在Android系统中添加状态栏、导航栏和下拉菜单的控制功能，主要涉及了SystemUI模块和Settings模块的修改，以及系统属性和广播的使用。在Android系统中，状态栏（StatusBar）、
告别系统限制！用ADB命令动态隐藏Android 14平板的导航栏和状态栏（无需Root）
最新发布
weixin_42533622的博客
04-07 357
本文详细介绍了如何通过ADB命令在Android 14平板上动态隐藏导航栏和状态栏，无需Root权限。从开启开发者选项到核心ADB命令解析，再到创建快捷开关和各品牌设备适配指南，全面覆盖了实现沉浸式体验的实用技巧。适用于阅读、游戏、演示等多种场景，帮助用户最大化利用屏幕空间。
Android系统 添加动态控制SystemUI状态栏、导航栏和下拉菜单
我其实什么都不会
08-29 3199
本文介绍了如何在Android系统中添加状态栏、导航栏和下拉菜单的控制功能，主要涉及了SystemUI模块和Settings模块的修改，以及系统属性和广播的使用。这些功能可以让用户控制和调用决定是否启用显示xx。
Android 13 SystemUI 屏蔽导航栏；屏蔽锁屏；隐藏状态栏；禁止状态栏下拉；屏蔽Camera绿色图标；屏蔽原生音量条；屏蔽原生亮度条。
热门推荐
weixin_43522377的博客
02-20 1万+
本文给出Android 13 手机/平板原生SystemUI 一些实用的屏蔽补丁。
Android 14.0 framework关于systemUI状态栏透明背景的功能实现
安卓兼职framework和app工程师的博客
05-14 431
在14.0的系统rom产品定制化开发中，在对于系统原生SystemUI的状态栏背景在沉浸式状态栏的 情况下默认是会随着背景颜色的变化而改变的，在一些特定背景下状态栏的背景也是会改变的，所以由于产品开发需要 要求需要设置状态栏背景为透明的，所以就需要在Activity创建的时候设置状态栏的背景色来完成功能的开发，接下来就来 看下如何实现具体功能
评论 3
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

表情包 插入表情
表情包 代码片
 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
