Designing TikTok

TikTok is a short-video sharing platform where users can upload, watch, and interact with videos. It delivers personalized content to millions of users with low-latency video streaming.

• Supports video upload, processing, streaming, and user interactions like likes, comments, and shares.
• Designed to handle millions of concurrent users while providing a fast and personalized viewing experience.

1. Problem Statement

The goal is to design a scalable TikTok-like system that allows users to upload, watch, and share short videos. The system should provide a smooth viewing experience and personalized content recommendations for millions of users.

• Support video uploads, streaming, recommendations, and user interactions such as likes, comments, and follows.
• Ensure high availability, low latency, and scalability while handling millions of concurrent users.

2. Requirements

Before designing the system, we need to identify its functional and non-functional requirements. These requirements define the expected features and quality attributes of the system.

2.1 Functional Requirements

Functional requirements describe the core features that the TikTok system must support.

• Users should be able to register, log in, and manage their profiles.
• Users should be able to upload, process, and publish short videos.
• Users should be able to like, comment, share, and save videos.
• Users should be able to follow creators and view their profiles.
• Users should be able to search for videos, creators, hashtags, and sounds.
• The system should send notifications for likes, comments, follows, and mentions.

2.2 Non-Functional Requirements

Non-functional requirements define how well the system should perform.

• Availability: The system should remain highly available with minimal downtime.
• Scalability: It should support millions of concurrent users and billions of video views.
• Reliability: Video uploads, processing, and interactions should be reliable without data loss.
• Low Latency: Videos should start playing quickly with minimal buffering.
• Performance: The recommendation feed and video loading should respond within a few hundred milliseconds.
• Security: User authentication, authorization, and data transmission should be secure.
• Storage: The system should efficiently store and manage massive amounts of video content.
• Consistency: User interactions such as likes and comments can be eventually consistent.
• Maintainability: The architecture should be modular and easy to maintain and extend.

3. Capacity Estimation

Before designing the architecture, we estimate the expected traffic, storage, and bandwidth requirements. These estimations help determine the infrastructure needed to support millions of users and large-scale video streaming.

Assumptions

3.1 Storage Estimation

Assume each uploaded video has an average size of 20 MB, and users upload approximately 100 million videos every day.

Daily Storage = 100 Million × 20 MB = 2 PB/day

For 30 days,

Monthly Storage = 30 × 2 PB = 60 PB

Estimated Storage: 60 PB/month (excluding replicas and backups).

3.2 Bandwidth Estimation

Assume users watch approximately 10 billion videos every day.

Daily Bandwidth = 10 Billion × 20 MB = 200 EB/day

Average bandwidth:

200 EB / 86400 sec
≈ 18.5 Tbps

Estimated Bandwidth: ~18.5 Tbps

Since video streaming consumes enormous bandwidth, videos should be delivered through a Content Delivery Network (CDN) to reduce latency and improve user experience.

3.3 Server Estimation

Assume one streaming server can handle approximately 100,000 concurrent video streams.

Number of Streaming Servers

= 300 Million / 100,000
≈ 3000 Servers

Estimated Streaming Servers: 3000 Servers

3.4 Requests Per Second (RPS)

Assume users generate approximately 10 billion video views per day.

Read Requests Per Second (RPS)

= 10 Billion / 86400
≈ 115,741 requests/sec

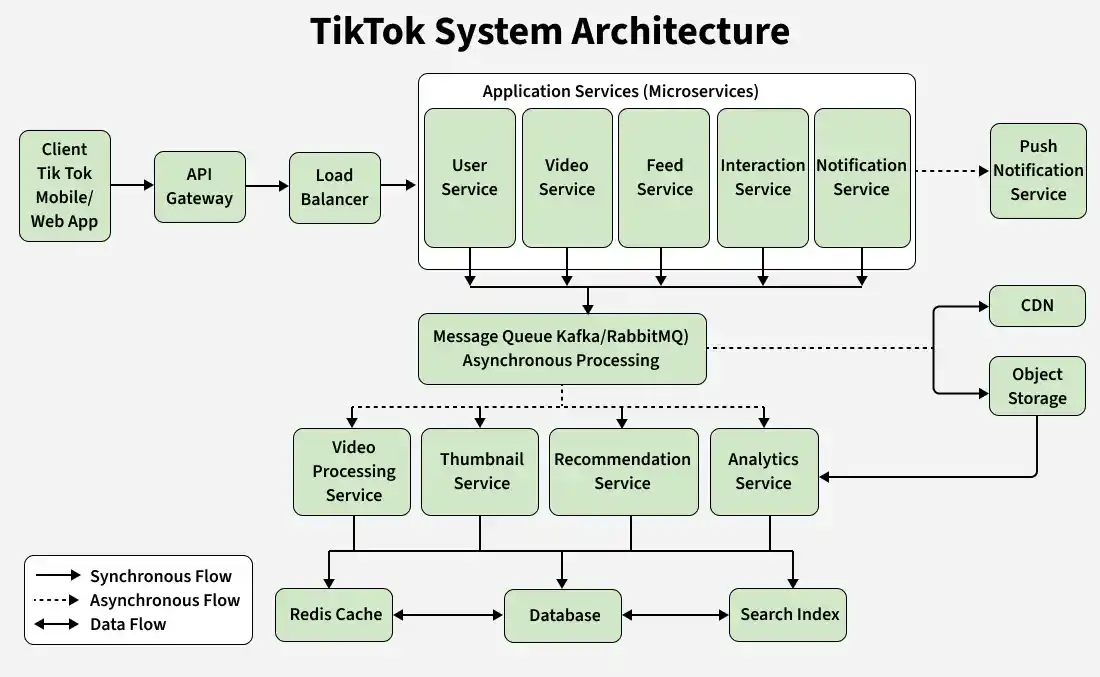

4. High-Level Design (HLD)

The High-Level Design (HLD) describes the overall architecture of the TikTok system and explains how different components work together to support video upload, processing, recommendation, and low-latency video streaming for millions of users.

Core Components

After the architecture diagram, explain each component one by one.

• Client: The client represents the TikTok mobile or web application where users upload videos, browse feeds, and interact with content.
• API Gateway: The API Gateway acts as the single entry point for all client requests. It authenticates users, applies rate limiting, and forwards requests to the appropriate backend services.
• Load Balancer: The Load Balancer distributes incoming requests across multiple application servers to ensure high availability and prevent server overload.
• User Service: The User Service manages user accounts, authentication, profiles, followers, and following relationships.
• Video Service: The Video Service handles video uploads, metadata management, and video publishing.
• Video Processing Service: The Video Processing Service transcodes uploaded videos into multiple resolutions, generates thumbnails, and optimizes videos for streaming.
• Recommendation Service: The Recommendation Service generates the personalized For You feed using user behavior, watch history, likes, shares, and machine learning models.
• Feed Service: The Feed Service retrieves personalized videos and delivers them to users in the correct order.
• Interaction Service: The Interaction Service manages likes, comments, shares, saves, and follow operations.
• Notification Service: The Notification Service sends push notifications for likes, comments, follows, mentions, and new followers.
• Search Service: The Search Service enables users to search for videos, creators, hashtags, and sounds.
• CDN (Content Delivery Network): The CDN caches video content close to users, reducing latency and ensuring smooth video playback across different geographical regions.
• Object Storage: Object Storage stores original videos, transcoded videos, thumbnails, and other media assets.
• Redis Cache: Redis stores frequently accessed data such as trending videos, user sessions, recommendation cache, and popular creators.
• Database: The database stores user profiles, video metadata, comments, likes, follows, and other application data.
• Message Queue: A Message Queue enables asynchronous processing of tasks such as video transcoding, recommendation updates, notifications, and analytics.

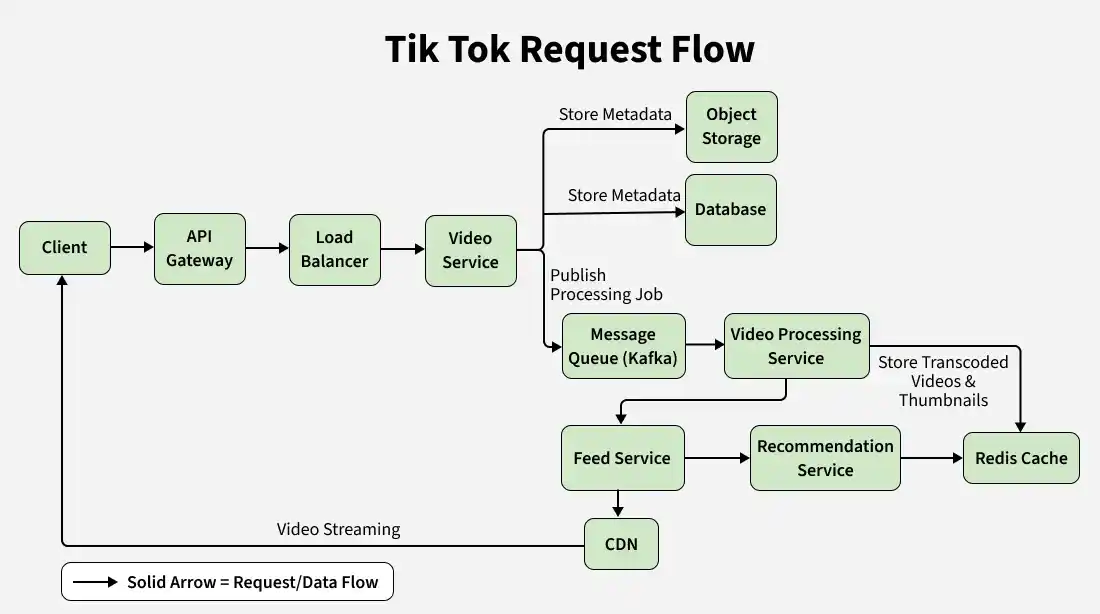

Request Flow

After explaining the components, describe how a video upload request travels through the system.

• User uploads a video from the TikTok application.
• The request reaches the API Gateway.
• The Load Balancer forwards it to the Video Service.
• The video is uploaded to Object Storage.
• The Video Processing Service transcodes the video and generates thumbnails.
• Video metadata is stored in the Database.
• The Message Queue triggers background tasks such as recommendation updates and notifications.
• Once processing is complete, the Feed Service makes the video available in users' feeds.
• Users stream the video through the CDN for low-latency playback.

Data Flow

The data flow explains how videos and user interactions move across different components of the TikTok system.

• The client sends requests to the API Gateway, which authenticates and forwards them to the appropriate services.
• Uploaded videos are stored in Object Storage, while video metadata is saved in the Database.
• The Video Processing Service generates multiple video resolutions and thumbnails for adaptive streaming.
• The Feed Service retrieves personalized recommendations using the Recommendation Service and Redis Cache.
• Videos are streamed to users through the CDN to reduce latency and improve playback performance.
• User interactions such as likes, comments, shares, and follows are stored in the Database and used to continuously improve recommendation results.

5. Technology Stack

The TikTok system uses different technologies to handle video uploads, streaming, storage, caching, and recommendation efficiently.

• Each technology is selected based on scalability, performance, and reliability requirements.
• A combination of SQL, NoSQL, caching, and object storage enables the platform to serve millions of users.

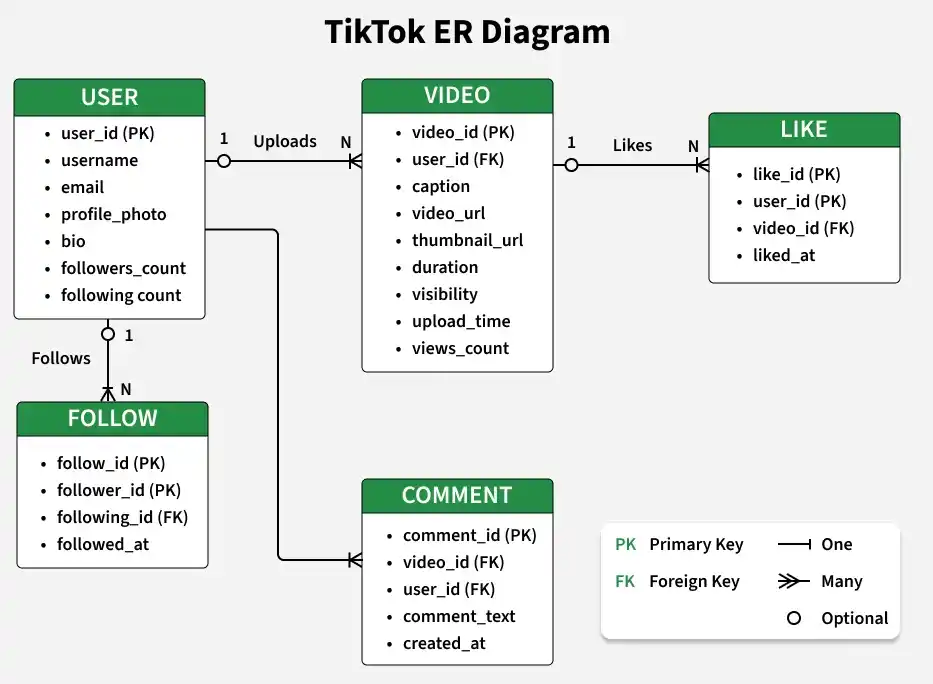

6. Data Model Design

The data model defines how TikTok stores and manages users, videos, interactions, and media assets. A well-designed schema enables efficient storage, fast retrieval, and supports billions of videos and user interactions.

• Identify the core entities required for video sharing and user interactions.
• Select suitable databases for structured data, video metadata, and media storage.

Core Entities

The TikTok system consists of the following core entities:

• User: Stores user profile information, authentication details, and account settings.
• Video: Stores video metadata such as title, description, creator, duration, hashtags, and visibility.
• Interaction: Stores user activities such as likes, comments, shares, saves, and views.
• Media: Stores metadata of uploaded videos, thumbnails, and processed video files.

Database Selection

A combination of SQL, NoSQL, and Object Storage can be used depending on the type of data.

• SQL Database is suitable for storing structured data such as user accounts, profiles, and relationships.
• NoSQL Database is better suited for storing video metadata, comments, and user interactions because of its high scalability.
• Object Storage stores original videos, transcoded videos, and thumbnails, while only their metadata is maintained in the database.

7. API Design

The API design defines how the client communicates with backend services to upload videos, fetch feeds, manage user interactions, and perform search operations.

• Design REST APIs that are scalable and easy to consume.
• Use appropriate HTTP methods for different operations.
• Secure APIs using JWT or OAuth authentication.

Authentication APIs

Video APIs

Feed APIs

Interaction APIs

Search APIs

Sample Request

POST /api/v1/videos/upload

{

"userId": "user_101",

"caption": "Beautiful sunset",

"hashtags": [

"#nature",

"#travel"

],

"privacy": "public"

}

Sample Response

{

"videoId": "vid_98765",

"status": "uploaded",

"processingStatus": "queued",

"timestamp": "2026-07-23T10:30:45Z"

}

7. Low Level Design

The Low-Level Design (LLD) describes the internal structure of the TikTok system by defining the key classes, their responsibilities, and interactions. It helps build a modular, maintainable, and scalable application.

• Identify the core classes required for video sharing and recommendations.
• Define the responsibilities and interactions between different modules.
• Apply SOLID principles and suitable design patterns for better maintainability.

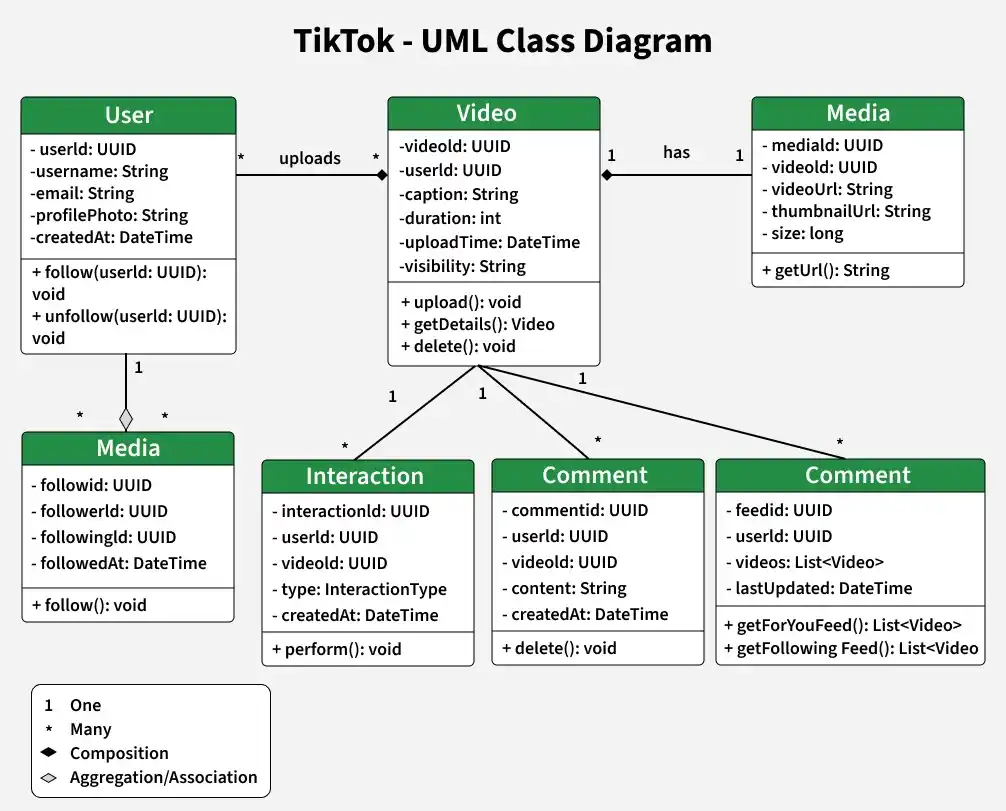

Core Classes

The TikTok system can be designed using the following core classes:

• User: Manages user profile, authentication, followers, and following information.
• Video: Stores video metadata such as title, description, duration, visibility, and upload details.
• Media: Manages video files, thumbnails, and storage locations.
• Feed: Generates and serves personalized "For You" and Following feeds.
• Recommendation: Processes user behavior and recommends relevant videos.
• Interaction: Handles likes, comments, shares, saves, and view counts.
• Notification: Sends notifications for likes, comments, follows, and mentions.
• VideoService: Manages video upload, retrieval, publishing, and deletion operations.

SOLID Principles

The TikTok system follows SOLID principles to keep the code modular, maintainable, and easy to extend.

• Single Responsibility Principle (SRP): Each service has one responsibility, such as VideoService for videos and RecommendationService for feed generation.
• Open/Closed Principle (OCP): New content types or recommendation algorithms can be added without modifying existing code.
• Liskov Substitution Principle (LSP): Different content types (ShortVideo, LiveVideo, Story) can be used wherever a generic Content object is expected.
• Interface Segregation Principle (ISP): Services expose only the methods required by their consumers.
• Dependency Inversion Principle (DIP): High-level services depend on abstractions, allowing databases, caches, or storage providers to be replaced easily.

Design Patterns

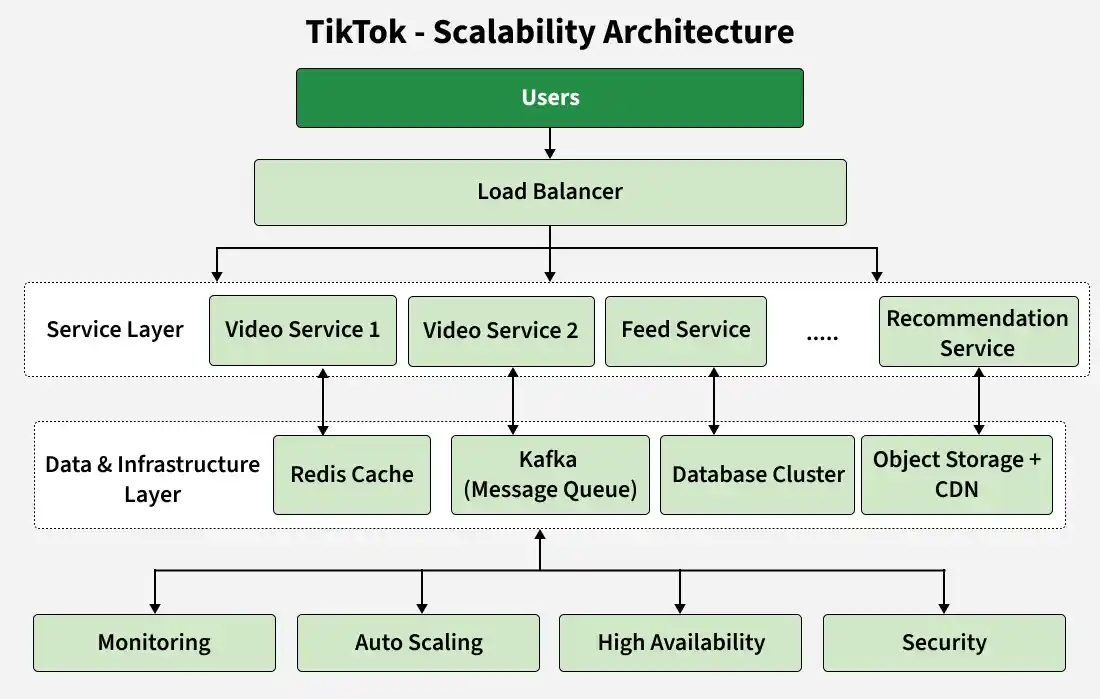

9. Scalability & Performance

Scalability and performance ensure that the TikTok system can support millions of concurrent users while providing low-latency video uploads, fast streaming, and personalized recommendations.

• CDN (Content Delivery Network): Caches video content closer to users, reducing latency and enabling smooth video playback across different regions.
• Redis Cache: Stores frequently accessed data such as trending videos, recommendation cache, and user sessions to improve response time.
• Load Balancing: Distributes incoming requests across multiple application servers to ensure high availability and prevent server overload.
• Database Sharding & Replication: Sharding distributes user and video data across multiple databases, while replication improves read performance and fault tolerance.
• Asynchronous Processing: Kafka or other message queues handle video transcoding, notifications, recommendation updates, and analytics in the background.
• Horizontal Scaling: Additional Video, Feed, Recommendation, and Processing Services can be added dynamically to handle increasing traffic.
• Adaptive Video Streaming: Videos are transcoded into multiple resolutions and streamed using HLS or MPEG-DASH for smooth playback on different networks.
• Rate Limiting & Auto Scaling: Rate limiting prevents API abuse, while auto scaling automatically adjusts resources based on traffic demand.

10. Bottlenecks & Improvements

This section discusses the key challenges a TikTok-like system may face at scale and the techniques used to improve scalability, reliability, and performance.

• Identify common bottlenecks in video upload, streaming, and recommendation services.
• Apply techniques to improve availability, scalability, and fault tolerance.

Common Bottlenecks

• Video Processing Bottleneck: Video transcoding is resource-intensive. Use asynchronous processing with worker nodes and message queues.
• Database Bottleneck: High read/write traffic can overload a single database. Use replication and sharding to distribute the load.
• Cache Misses: Cache misses increase database queries and response time. Use Redis to cache trending videos and user feeds.
• CDN Bottleneck: Serving videos from the origin server increases latency. Use a CDN to deliver content from edge locations.
• Recommendation Service Overload: Generating personalized feeds for millions of users is computationally expensive. Use distributed recommendation services and precomputed recommendations.

Possible Improvements

• Auto Scaling: Automatically scale services based on traffic demand.
• Global CDN: Cache videos closer to users for faster streaming.
• Asynchronous Processing: Process uploads, transcoding, and notifications using Kafka and worker services.
• Geo-Distributed Deployment: Deploy services across multiple regions to reduce latency.
• Monitoring & Alerting: Continuously monitor system health and quickly detect failures.
